Converting and visualizing a trace
The Fuchsia trace system supports various file formats for recording traces. Each data format requires a specific tool to visualize trace results.
Prerequisites
Before you attempt to convert or analyze a trace file, make sure you've recorded a trace.
Fuchsia trace file formats
The following types of file formats can store Fuchsia trace data:
- FXT (or Fuchsia trace format) is a binary format that is a direct encoding of the original trace data that is produced by the various programs. For more information, see FXT trace.
- JSON is used for viewing trace data on Chrome. For more information, see JSON trace.
- HTML is a standalone file that includes both the viewer and trace data. For more information, see HTML trace.
Convert Fuchsia trace files
To convert one or more files from FXT to JSON, run the following command:
Replace FXT_FILE with a trace output file in FXT format, for example:
```none {:.devsite-disable-click-to-copy} fx trace2json < trace.fxt > trace.json
## Visualize a trace
There are different ways to visualize a trace based on the format
of the trace:
* [FXT trace](converting-visualizing-a-trace.md#fxt-trace)
* [JSON trace](converting-visualizing-a-trace.md#json-trace)
* [HTML trace](converting-visualizing-a-trace.md#html-trace)
### FXT trace {#fxt-trace}
To visualize an FXT trace, use the
[Perfetto viewer](https://ui.perfetto.dev){:.external}, which also
allows you to use SQL to
[query your trace data](https://www.perfetto.dev/#/trace-processor.md){:.external}.
### JSON trace {#json-trace}
To visualize a JSON trace, use Chromium's
[Trace-Viewer](https://github.com/catapult-project/catapult/tree/HEAD/tracing){:.external}.
The viewer is built into [Chrome](https://google.com/chrome) and can be
loaded with `chrome://tracing`. For more information on Chrome's trace
viewer, see
[The Trace Event Profiling Tool](https://www.chromium.org/developers/how-tos/trace-event-profiling-tool){:.external}.
### HTML trace {#html-trace}
To generate an HTML trace (which is a viewer bundled with trace data), you need to run
`trace2html` from the [Chromium Catapult Repository](https://github.com/catapult-project){:.external}.
From the Catapult repository, run the following command:
```posix-terminal
./tracing/bin/trace2html <JSON_TRACE_FILE>
Analyze a trace file {#analyze-a-trace-file}
Note: The instructions in this section detail how to visualize an JSON trace with a Chrome browser.
To analyze a JSON trace file:
- Open a new tab in Chrome.
- Navigate to
chrome://tracing. - Click the Load button.
- Open your JSON trace file.
Navigation controls
As there is a lot of information in a trace file, there are some useful keyboard shortcuts that you can use:
Note: Near the top right of the page, there is a small ? icon that you can click to see help information.
wands: Zoom in and zoom out, respectively. The zoom function is based on the current position of your mouse.WandS: Zoom in and zoom out at a larger scale, respectively. The zoom function is based on the current position of your mouse.aandd: Pan left and right, respectively.AandD: Pan left and right at a larger scale, respectively.- You can deselect specific process rows to remove processes that aren't important for your current trace. To deselect a specific process row, click the x in the right corner of the process row.
Interpret the trace data {#interpret-the-trace-data}
The example in this section shows a trace of what the system is doing
while running the du command, which shows disk usage.
Before you can record trace data, you must start a Fuchsia instance. From your host, if you don't have a Fuchsia target device, you can start a Fuchsia emulator with networking:
Note: For more information on getting started with Fuchsia, see Fuchsia.
This command configures and starts the Fuchsia emulator.
To record a trace of du, do the following:
- In a new terminal, run
ffx trace start:
Note: For more information on recording a trace in Fuchsia, see Recording a Fuchsia trace.
This command sets a recording buffer size of 64 megabytes and records all tracing categories.
- In the Fuchsia emulator's terminal, run the following command:
/boot/bin/sh -c "'\
sleep 2 ;\
i=0 ;\
while [ \$i -lt 10 ] ;\
do /bin/du /boot ;\
i=\$(( \$i + 1 )) ;\
done'"
This command runs du in a loop,
Note: For more information on creating a process in Fuchsia, see Process creation.
- To finish the tracing, press
Enterkey in the terminal on your host machine.
When the tracing is finished, it generated an FXT file,
- Convert this FXT file to JSON:
- Generate an HTML trace (see HTML Trace above):

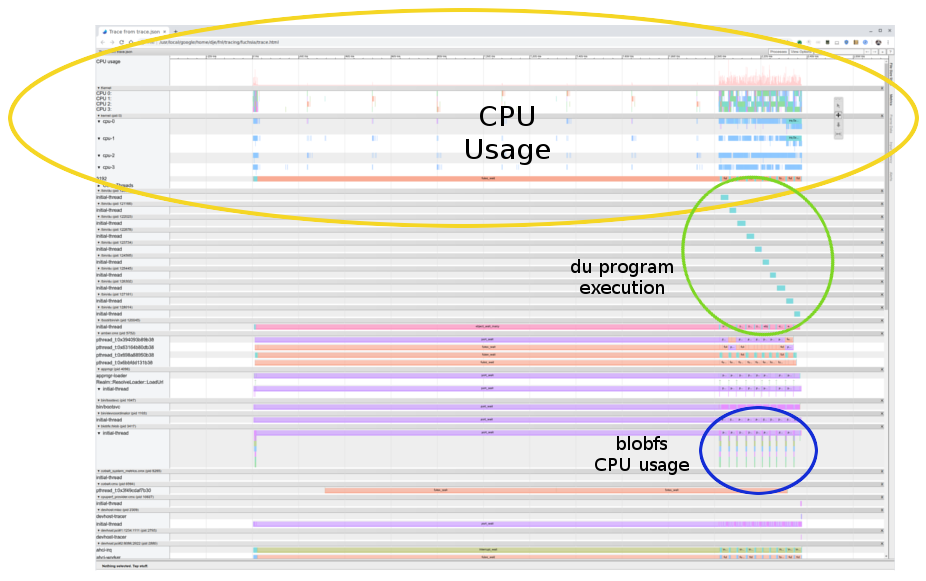

A trace file has a lot of information including a time scale near the top of the trace. In this example, the whole trace lasted about 2.5 seconds.
CPU usage {#cpu-usage}
The region marked by the yellow circle shows the CPU usage area where you can see the overall CPU usage on all CPU cores.
Program execution {#program-execution}
The region marked by the green circle shows the program execution.
In this example, you can see 10 invocations of the du program, which is
expected since the trace was recorded during a loop of du. Therefore,
you can see 10 different du process IDs, one after the other.
blobfs CPU usage {#blobfs-cpu-usage}
The region marked by the blue circle shows the CPU usage to write to the blobstore filesystem (blobFS).
In this example, you can see little bursts of CPU time that are each related
to an invocation of du.
At this high level, it can be difficult to determine the exact correlation between the CPU usage and the filesystem:
- Is the CPU usage caused by the loading of
dufrom the filesystem? - Is the CPU usage caused by the execution
duas it runs through the target filesystem to see how much space is in use?
You can zoom in on specific areas of this region to determine the correlation between the CPU usage and the filesystem.

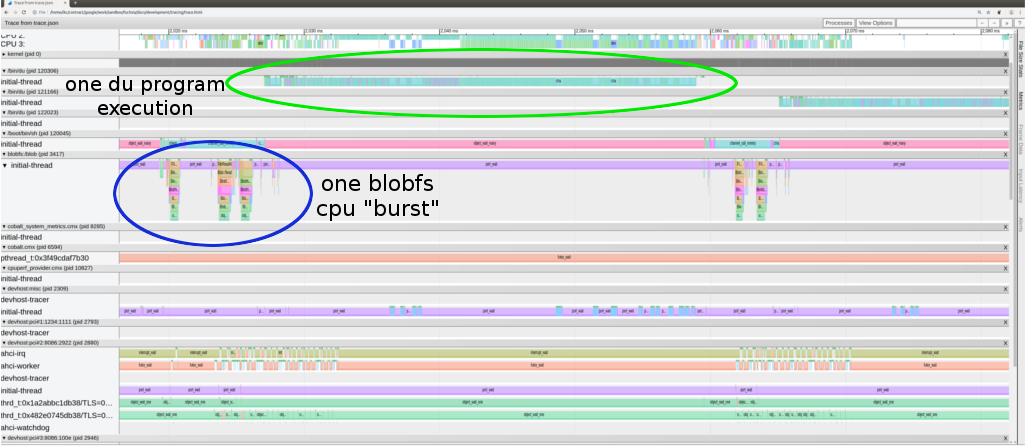

In this example, you can see just two du executions (the first is marked
with a green circle). The first blobfs CPU burst actually consists of
three main clusters and some smaller spikes. Subsequent blobfs CPU bursts
have two clusters.
From analyzing this example, you can see that the blobfs bursts happen
before the du program is executed. This information shows that the
blobfs bursts are not due to the du program reading the filesystem.
Instead, it shows that the bursts are due to loading the du program.
You are now ready to dive further into what is causing the blobs bursts.

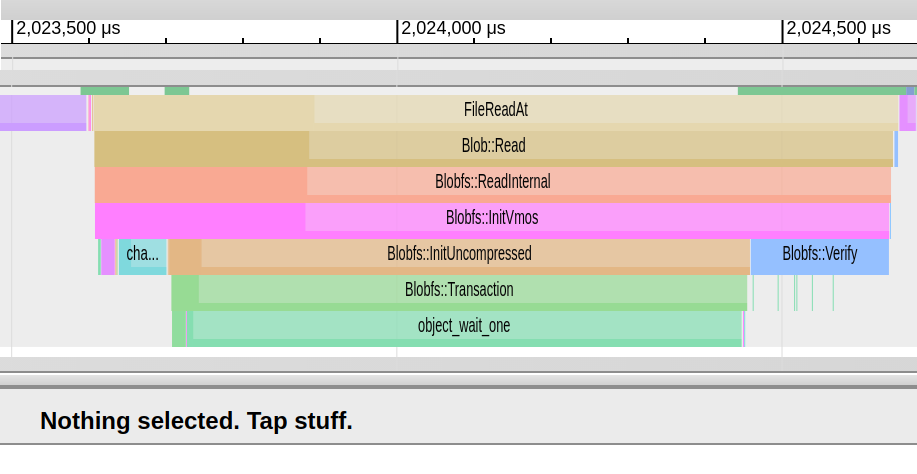

In this example, notice the time scale that spans a time period from 2,023,500 microseconds to just past 2,024,500 which indicated a time scale of about 1 millisecond.
During that millisecond, blobfs executed code, starting with a process
identified as FileReadAt, which then called Blob::Read, which
then called Blob::ReadInternal.
To correlate this information with the code, you can click on parts of the report for more detailed information about a specific object.

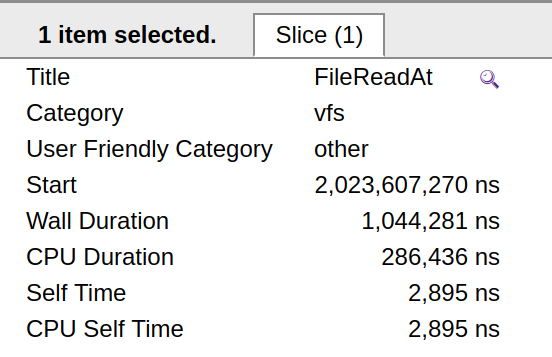

If you click on FileReadAt, you can see the following information:
This information tells you the following:
- The trace category for
FileReadAtisvfs. - The length of time of the function execution.
Note: For information on how tracing is performed for FileReatAt,
see //src/lib/storage/vfs/cpp/connection.cc.

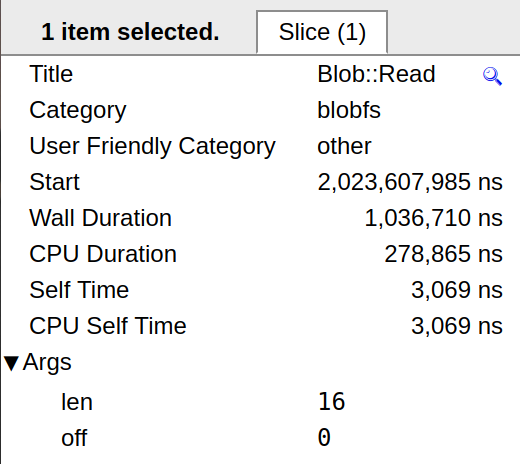

If you click on Blob::Read, you can see the following information:
Note: For information on how tracing is performed for Blob::Read,
see //src/storage/blobfs/blob.cc.
The code for Blob::Read is:
zx_status_t Blob::Read(void* data,
size_t len,
size_t off,
size_t* out_actual) {
TRACE_DURATION("blobfs", "Blob::Read", "len", len, "off", off);
LatencyEvent event(&blobfs_->GetMutableVnodeMetrics()->read,
blobfs_->CollectingMetrics());
return ReadInternal(data, len, off, out_actual);
}
This code calls calls the TRACE_DURATION() macro with the category of blobfs,
a name of Blob::Read, and a length and offset key and value pairs. All
of this information is recorded in the trace file.
After analyzing these examples, you can still see additional objects that are being traced.
